Description

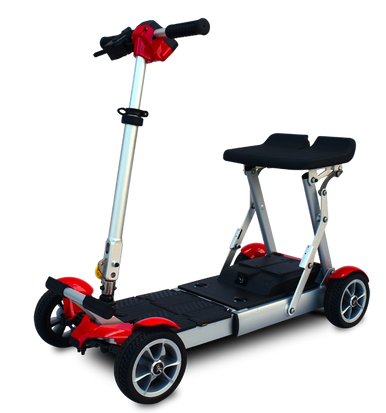

The lightest scooter in the industry with a Total weight of 37 lb. including battery. Patented in the U.S. Collapses and folds to the size of a carry-on bag. Driving range of 7 – 10 miles. Battery type/size = 24V 11.6Ah/Lithium Ion. Weight capacity = 250 lb. Available in Pearl Green, Ocean Blue and Gypsy Red.
Specs:
| Overall Length | 33.7″ / 855mm |
| Overall Width | 16.5″ / 420mm |
| Overall Height (at Maximum Tiller Height) | 35″ / 900mm |
| Overall Height – at Minimum Tiller Height | 28″ / 711mm |
| Legroom – Floorboard Length x Width | 9.6″ x 10″ / 245x 252mm |
| Deck Height – Floorboard to Floor | 6″ / 150mm |
| Ground Clearance | 1.7″ / 45mm |
| Turning Radius | 57″ / 1450mm |
| Folded Overall Length | 25″ / 640mm |
| Folded Overall Width | 16.5″ / 420mm |
| Folded Overall Height | 11″ / 290mm |
| Weight with Std. | 37 lbs / 16.7 Kg |
| Weight with Opt. 112V11.6Ah Li Ion Batteries | 4 lbs / 1.85 Kg |
| Weight without Batteries | 33 lbs / 14.96Kg |
| Seat Type | PU |
| Seat – Width & Depth & Height | 13″ x 9 ” / 330mm x 230mm |
| Seat – Cushion Thickness | 1.2″ / 30mm |
| Seat Height – Cushion to Deck | 13.4″ / 340mm |
| Seat Height – Cushion to Floor | 19.3″ / 490mm |
| Tire Type | PU Solid |
| Rim Type Rear | 5″ / 124mm |
| Rim Type Front | 5″ / 124mm |
| Outside Diameter Rear | 6.5″ |
| Tire Width Rear | 2″ / 50mm |
| Outside Diameter Front | 6.5″ |
| Tire Width Front | 2″ / 50mm |
| Battery Type & Power | Lithium Ion 25.2V / 274.4WH |
| Brake System | Electromagnetic brake |
| Climbing Angle – Maximum Recommended | 3 degree |
| Charger Type | 2A off board |
| Charging Time | 8 Hours |
| Controller | Dynamic 50A |
| *Driving Range | 6.3 mile -STD / (12.4 miles Option battery x 2) |
| Load Capacity | 250 lbs / 115 Kg |
| Motor & Drive Location | |
| *Speed – Maximum | 4 mph / 6.4 Km/h |
| Colors | Gypsy Red / Blue / Pearl Green |
| Tiller Type | T bar |
| Throttle Control Type | Lever |
| Anti-Tipper Wheels-Rear | NA |
