Description

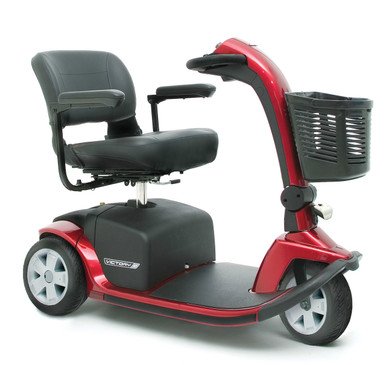

The Victory® 10 series offers added style, comfort and performance for your active lifestyle. Standard features include LED lighting package, backlit battery gauge, feather touch disassembly, wraparound delta tiller, 10” solid tires and a front basket. A 400 lb. weight capacity, a per charge range of up to 15.5 miles and a maximum speed up to 5.25 mph compliment the versatility of the Victory 10. Available in Viper Blue and Candy Apple Red.
Features:
- Exclusive one-hand feather touch disassembly provides the ultimate quick transport system
- 18″x17″ Slider Seat
- Delta tiller with wraparound handles
- Backlit battery gauge
- Exclusive stylish, lightweight, non-scuffing, black, low-profile tires
- Long-lasting, high-intensity LED headlight offers optimal pathway illumination
- Lightweight pinchless hinge seat eight position rotation, sliders and viscoelastic foam inserts for increased comfort
- Easy-grip tiller adjustment knob
- Easy access tiller-mounted charger port
- Auto-connecting front-to-rear harness
- “FDA Class II Medical Device*” – Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
- Click Here for Brochure
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Victory 10 3-Wheel
|
| Model Number1 |
S610
|
| Number or Tires | 3 |
| Front Tires2 | 3.5″x10″ Solid |
| Rear Tires2 | 3.5″x10″ Solid |
| Maximum Speed8 | Up to 5.3 mph |
| Ground Clearance2 | 2.2″ at motor; 3.4″ at side deck |
| Turning Radius2 | 42″ |
| Length2 | 45.25″ |
| Width2,4 | 22.25″ |
| Seat-to-Ground Height Range2 | 23.5″-25″ |
| Seat-to-Deck Range2 | 17.5″-19″ |
| Standard Seat Type | Compact, Foldable; Materal: Black Vinyl; Seat Size: 18″x17″ |
| Weight Without Batteries2 | 133 lbs. |
| Weight With Batteries | 3- wheel (U1)- 181 lbs. 3-wheel (40Ah)- 197 lbs. 4-wheel (U1)- 185 lbs. 4-wheel (40Ah)- 201 lbs. |
| Weight of Heaviest Piece2 | 54 lbs. (front section) |
| Battery Weight6 | U1- 24 lbs. each; 40AH (optional) -32 lbs. each |
| Battery Requirements7 | (2) U1 (standard); (2) 40AH (optional) |
| Per Charge Range (max)8,9 | Up to 15.5 miles |
| Battery Charger | Off-board, 3A (U1); Off-board, 5A(40AH) |
| Suspension | NA |
| Maximum Weight Capacity | 400 lbs. |
| HCPCS Code | K0801- Group 1 Heavy Duty |
| Warranty | Lifetime limited on frame; 2-year limited on electronics; 2-year limited on drivetrain |
| Color Options | Candy Apple Red, Viper Blue |
